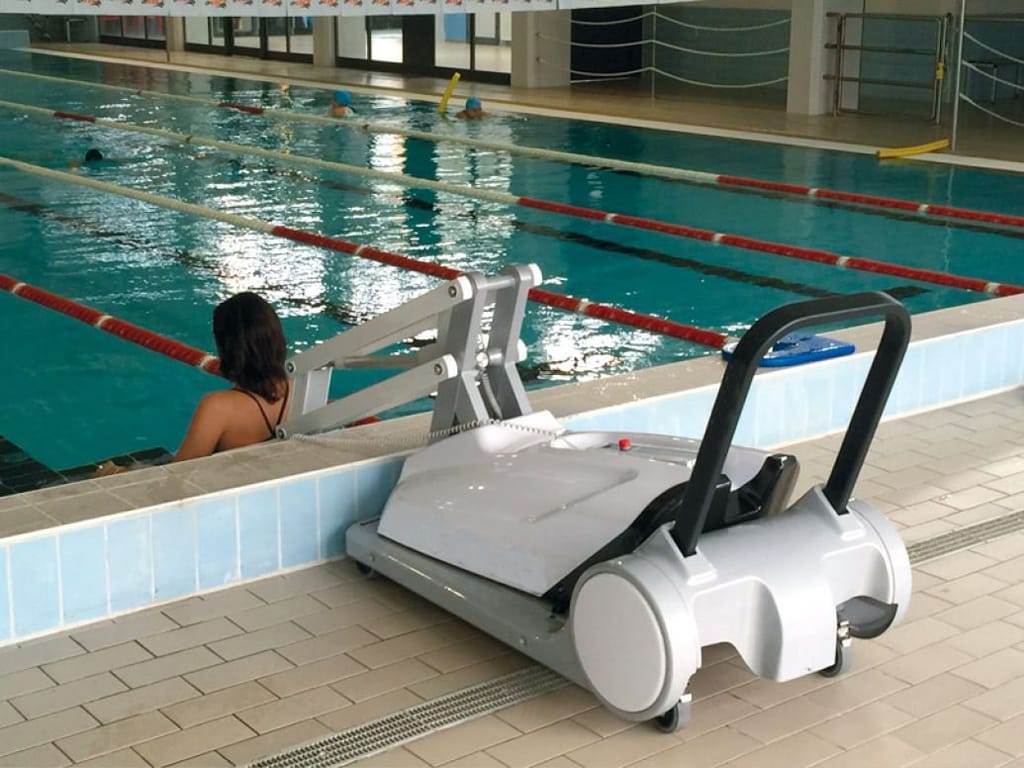

For independent operation by the user. Very light and therefore easy to roll. The further development of the swimming pool lift R36 enables the user to get in and out of the pool independently. The lifting arm can be turned sideways to the edge of the pool so that the user can easily transfer from a wheelchair or shower chair. By means of a remote control, the user can then move into and out of the water by himself. For wheelchair users with a high degree of independence. The lift requires no further attachment to the pool edge and can therefore be used flexibly at different points in the pool. With control panel up/down / right/left, emergency stop button, digital display for charging status, two wheels with brake.
Colour: white

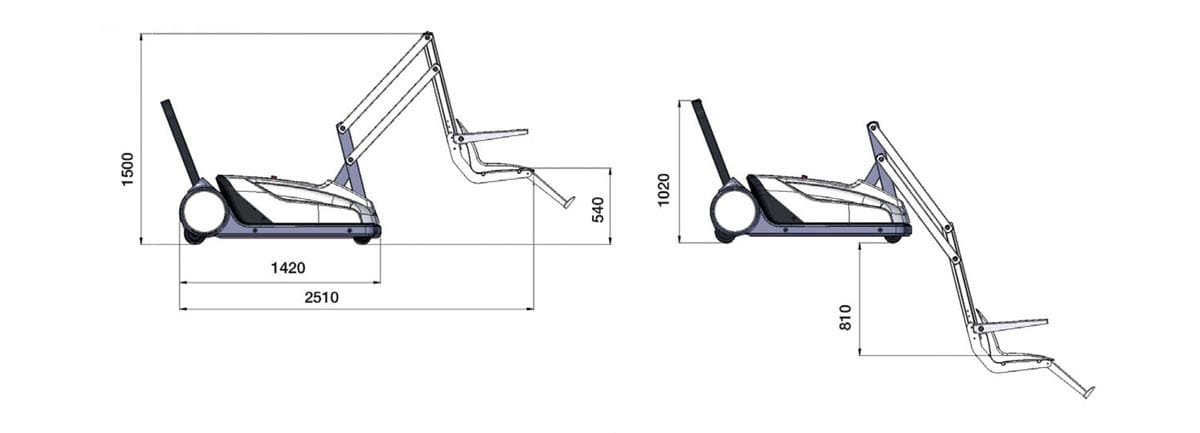

Size (L/W/H): max. 2,510 x 780 x 1500 mm
Load capacity: 136 kg
Medical device: Class 1
Dead weight of the lift: 300 kg, yet very smooth running
Power supply: built-in 24V batteries (incl. charger)
Target group: Swimmers with various disabilities with a high degree of independence
Positioning: at the edge of the pool, especially public pools – suitable for almost all
channel systems
Material: aluminium, stainless steel (1.4571)
For easy removal of the lift from the sleeve and for easier transport by one person.
Material: stainless steel V4A (1.4571)
As assistance to the person to be transported.
Material: stainless steel V4A (1.4571)
The R29ND has all the positive features of the R29N and can also be operated independently by the user, as it also rotates electrically.
Colour: white
Material: stainless steel V4A (1.4571)
Load capacity: up to 130 kg
Medical device: Class 1
Target group: for wheelchair users with various disabilities
Positioning: at the edge of the pool especially for therapy facilities or public baths
Distance from the pool edge: max. 500 mm
The lift can optionally be equipped with a handle and safety belts.
For easy removal of the lift from the sleeve, made of stable stainless steel frame construction, for easy transport by one person.
The simple, hydraulic pool lift with universal seat is the right choice when a lift is needed but swimmers rarely ask for it. The universal seat will transport swimmers with almost any kind of disability into the water. The lightweight, space-saving lift can be easily removed and stowed away by one person. No battery can be discharged because it is operated hydraulically by hand.
It is attached by means of the ground sleeve R11BE.
Colour: white
Material: stainless steel V4A (1.4571)
Load capacity: up to 136 kg
Medical device: Class 1
Target group: for a variety of types of disabilities
Positioning: at the pool edge in public pools
Distance from the pool edge: max. 500 mm in the standard version or max. 700 mm with optional arm extension and reduced load capacity
Waterproof four-point safety belt. For additional safety during transport.
This lift can be used for almost all types of obstructions and is adjustable to many types of gutter. The lift is particularly suitable for use in therapy facilities and is equipped with fold-down and very stable armrests for more perceived safety, a footrest that can be folded away and adjusted in height, and a very large (400 x 500 mm) flat seat for easy access. For even more possibilities of use, the seat can easily be disassembled and optionally a couch (R29L) or the universal seat (R12BE) can be mounted instead. The standard delivery includes the battery charger.
Colour: white
Material: stainless steel V4A (1.4571)
Load capacity: up to 180 kg
Medical device: Class 1
Target group: for wheelchair users with various disabilities
Positioning: at the edge of the pool especially for therapy facilities or public baths
Distance from the pool edge: max. 500 mm in the standard version or max. 750 mm with optional arm extension and reduced load capacity
The lift combines four considerable advantages:
1) It is rollable, no ground sleeve or anchoring is necessary.
2) The weight of approx. 140 kg is so light that even weaker persons can easily push it.
3) The new design considerably reduces the obstacles to use for the person being transported.
4) The lift can be used in a similar way to a wheelchair, and people can be picked up directly from the changing room. Unnecessary moving is no longer necessary.
With control panel up/down, emergency stop button, digital display for charging status, two wheels with brake. Secure standing at the pool edge due to automatic electrical lowering lock at the front.
Colour: white powder-coated
Size (L/W/H): approx. 1,245 x 1,510 x 640 mm
Load capacity: 136 kg
Medizinprodunk: Class 1
Dead weight of lift: approx. 140 kg
Power supply: built-in 24V batteries (incl. charger)
Target group: Swimmers with various disabilities
Positioning: at the edge of the pool, especially public pools – suitable for all standard channel systems where the water level is at a similar height to the pool surround, e.g. Wiesbaden channel, Finnish channel, stainless steel channel, etc.
Material: aluminium, stainless steel (1.4571)
With water-permeable and reinforced lying surface for lying patients up to 130 kg for R29N or R29ND. A simple mechanism makes it easy to put on and take off the couch and change the seat.
Material: stainless steel V4A (1.4571), plastic
Material: stainless steel V4A (1.4571)
With large water-permeable lying surface and stainless steel frame. For patients who are transported in a lying position.
Material: stainless steel V4A (1.4571), plastic
Material: stainless steel V4A (1.4571), plastic
Material: stainless steel V4A (1.4571), HDPE
Including. 24 Volt battery. Instead of hydraulic pump system. For immediate installation during production.
