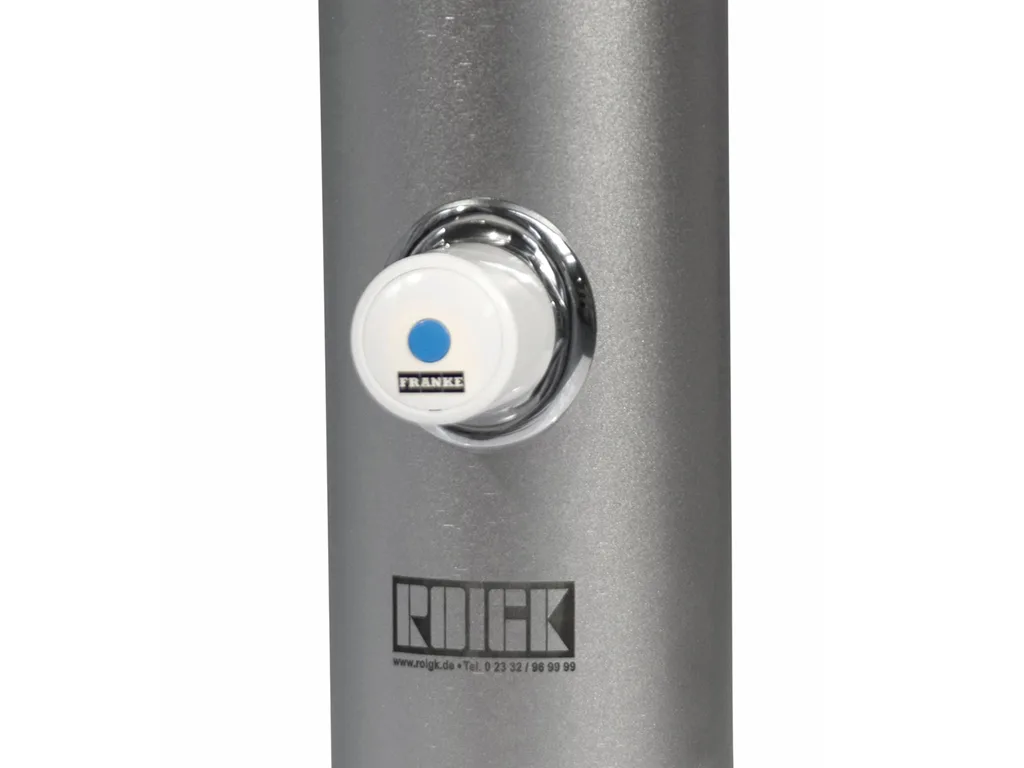

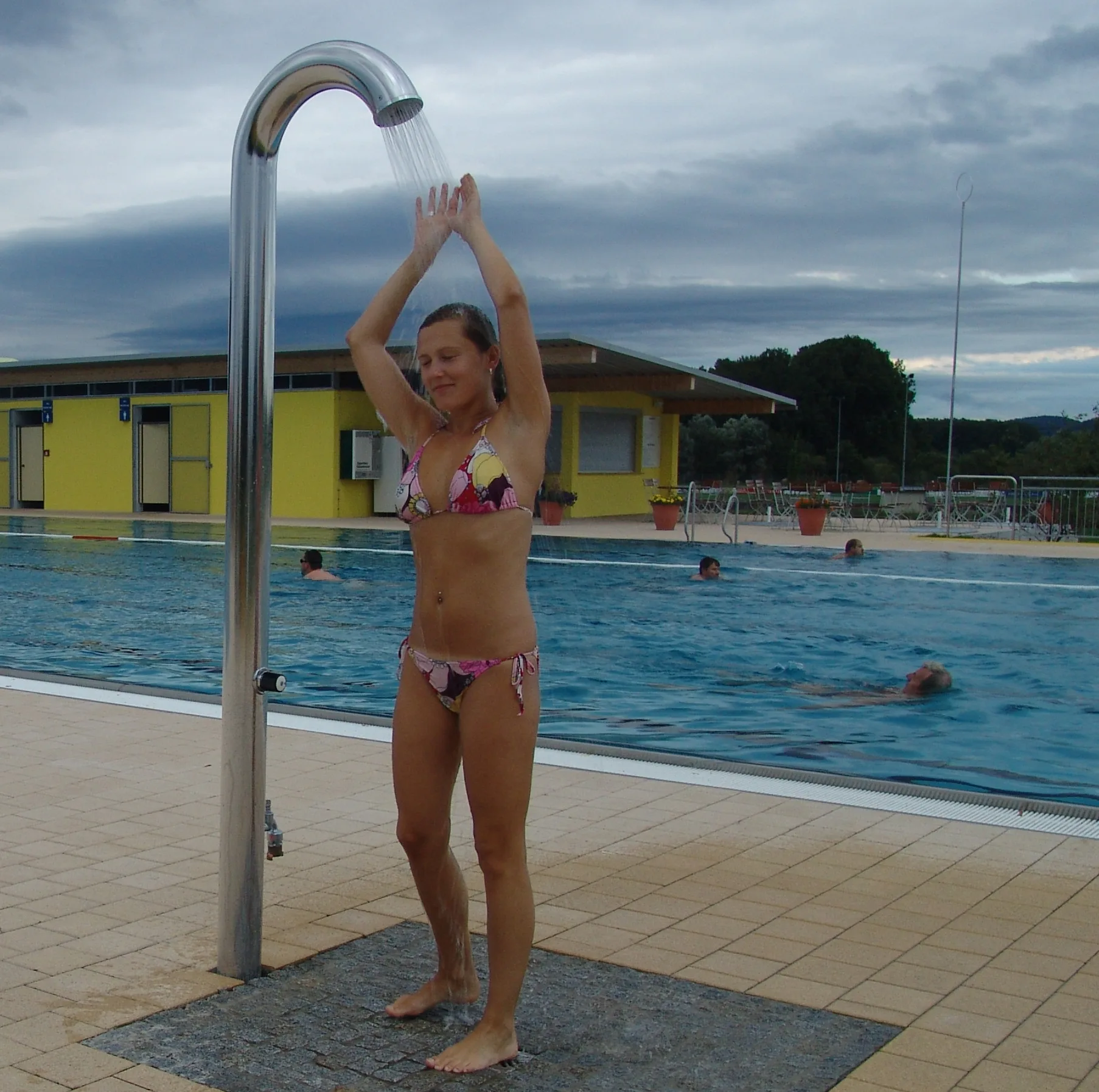

This timeless model has been used thousands of times for over 40 years and has proven itself over the years to be the outdoor shower par excellence. From model year 2015, we will be equipping the shower with a new type of water-saving shower head which, despite considerable savings, produces a tingling, large-drop rain jet with an intensive cleaning effect. From a water flow rate of 7.5 l/min, even long hair is thoroughly freed from shampoo without compromising comfort. Due to the high-quality surface and the strong stand, it offers extreme protection against corrosion and vandalism. The integrated patent plug-in coupling guarantees easy installation and there is no need for an unsightly looking installation flap. The shower consists of thick-walled 114 stainless steel tubing with finely adjustable time valve and ventilated tap for hose connection with socket wrench top.
Height: 2,430 mm
Water outlet height: 2.250 mm
Water flow rate: 5 to 10 l/min
Pressure: approx. 1 – 4 bar
Material: stainless steel V4A (1.4571)
With stainless steel cover, time adjustable, for connection to a water supply line, hose connection 1/2″.
Option for Belissima, Balena, Pingo, Flippo, Kurt, Robby, Bubu, Benny, Mobi, Ducky, Pucky, Schildi
A plastic curtain should be used as wind protection against heat loss. We adapt the clamping rail and the PVC slats individually according to the size of your swim-out channel.
Material: stainless steel V4A (1.4571 or optionally 1.4539) powder-coated, and PVC
Internet Langtext Englisch
The further development of the R43 free-standing shower. With programmable piezo push-button and automatic hygiene rinsing. The flow time is easy to program. In addition, the shower has a start-stop function to save additional water. The automatic hygiene rinse can also be easily programmed in terms of running time and rinsing cycle. Power is supplied by a hybrid battery with a life of up to 10 years (depending on the intensity of use). With water-saving shower head and high-quality surface. With patent plug-in coupling without unsightly mounting flap. Made of thick-walled 114 stainless steel pipe.
Height: 2,430 mm
Water outlet height: 2.250 mm
Water flow rate: 5 to 10 l/min
Pressure: approx. 1 – 4 bar
Operation: via programmable piezo push button with start-stop function
Temperature range: 5 – 70 °C (temporarily 80 °C for thermal disinfection)
Power supply: Hybrid battery with long life, up to 10 years depending on frequency of use
Material: stainless steel V4A (1.4571)
Especially in the case of larger outdoor pools, your visitors will be happy if they can quickly change without having to walk to the main changing room. The changing room is extra wide and therefore barrier-free and suitable for wheelchair users. Thanks to the built-in seat, changing is child’s play and the spiral shape and visible foot space makes a curtain unnecessary. The stainless steel feet have flanges for anchoring to the floor. Open at the top: Heat drains off and sun shines in.
Size (l/w/h): 2,000 x 1,700 x 2,300 mm
Colour: red RAL 2002 or special colour
Material: Glass fibre reinforced plastic (GfK) and stainless steel V4A (1.4571)
As an option, we can equip the water features with a hand wheel for even more interactivity. Turn the handwheel by 90 degrees and turn it further and the water flows again. Beautiful hand wheel made of colourshine glass, available for different attractions.
For walk-through basins or walk-through troughs with overflow height according to KOK. Installation part with round polished facing flange and screw thread. Overflow insert as vertical pipe with perforations all around. Optional with siphon. Optional with chain as anti-theft protection.
Threaded connection: 2″ or 2 1/2″ as special version
Overflow height: 150 mm (or special height)
Material: stainless steel V4A (1.4571)
Consisting of two stainless steel tube supports with circular mounting tube, with 8 towel holders and a central brace, all tube ends with welded-on hemispherical cap. Standard for firm grouting in the floor.
Height: 2.000 mm
Width: 400 mm
Material: stainless steel V4A (1.4571) blasted and electropolished
Same as R43, but as double shower with 2 shower heads and 2 time valves at 180 degree angle.
From model year 2015 onwards, we are equipping the shower with a new type of water-saving shower head which, despite considerable savings, produces a tingling, large-drop rain jet with an intensive cleaning effect. From a water flow rate of 7.5 l/min (per shower head), even long hair is thoroughly freed from shampoo without compromising comfort. Due to the high-quality surface and the strong standing column, it offers extreme protection against corrosion and vandalism. The integrated patent plug-in coupling guarantees easy installation and there is no need for an unattractive-looking installation flap. The shower consists of thick-walled 114 stainless steel tubing with finely adjustable time valve and ventilated tap for hose connection with socket wrench top.
Height: 2,430 mm
Water outlet height: 2.250 mm
Water flow: 5 to 10 l/min (per shower head)
Pressure: approx. 1 – 4 bar
Material: stainless steel V4A (1.4571)
As an option, we can equip the water features with a hand wheel for even more interactivity. Turn the handwheel by 90 degrees and turn it further and the water flows again. Also available optionally for water mushroom R8214-1000.
Especially suitable for limited space conditions. Including built-in drain and overflow valve R100 and water inlet for pure water connection. A floor drain can be opened for complete emptying.
Size: 1.150 x 1.550 mm
Colour: blue RAL 5015 or special colour
Material: Glass fibre reinforced plastic (GfK)
Height: approx. 180 mm
As R43, but as short version with a total height of 1,300 mm. Especially for positioning on a plinth.
From model year 2015 onwards, we will equip the shower with a new type of water-saving shower head which, despite considerable savings, produces a tingling, large-drop rain jet with an intensive cleaning effect. From a water flow rate of 7.5 l/min, even long hair is thoroughly freed from shampoo without compromising comfort. Due to the high-quality surface and the strong stand, it offers extreme protection against corrosion and vandalism. The integrated patent plug-in coupling guarantees easy installation and there is no need for an unsightly looking installation flap. The shower consists of thick-walled 114 stainless steel tubing with finely adjustable time valve and ventilated tap for hose connection with socket wrench top.
Height: 1,300 mm (special heights possible)
Water flow rate: 5 to 10 l/min
Pressure: approx. 1 – 4 bar
Material: stainless steel V4A (1.4571)
Kai plays with the shark. And he’s already clean ?
Height: 2,560 mm
Water outlet height: 2.250 mm
Water flow rate: 5 to 10 l/min
Pressure: 1 to 4 bar
Material: stainless steel V4A (1.4404) powder-coated
For easy assembly and disassembly of the showers.
The end component is supported on the foundation with threaded rods.
Suitable for R43, R43K, R43P, R43D, OXY showers.
Walking through basin with overflow channel on both sides and separate water inlet, incl. floor drain connection for residual emptying. The running surfaces are coated to be non-slip (slip class C according to DIN 51097). The side demarcation is raised and bevelled by 45 degrees to prevent unauthorised access. The running surface is curved and can be used by wheelchair users, with integrated base for the installation of a free-standing shower (e.g. R43 or R46). Incl. stainless steel inlet and outlet connections below for connection to the water system. Similar to R99105R, but with pure water inlet and channel outlet on both sides. Especially suitable if a lot of dirt is expected.
Size: 3.000 x 2.400 mm
Colour: blue RAL 5015 or special colour
Material: Glass fibre reinforced plastic (GfK) and stainless steel V4A (1.4571)
