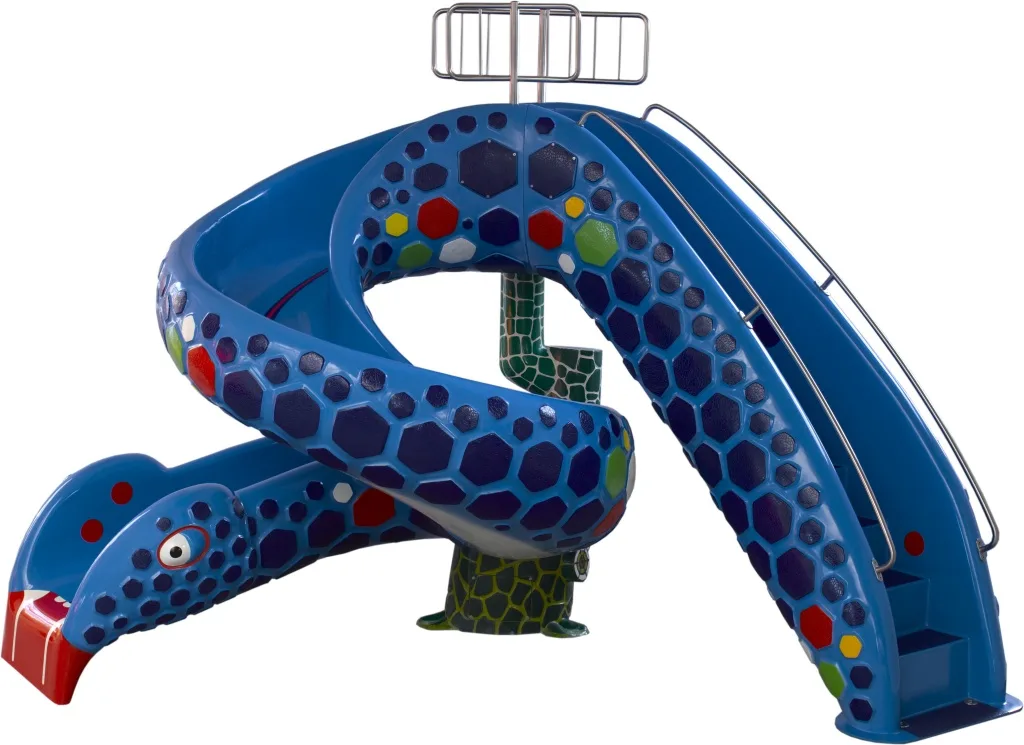

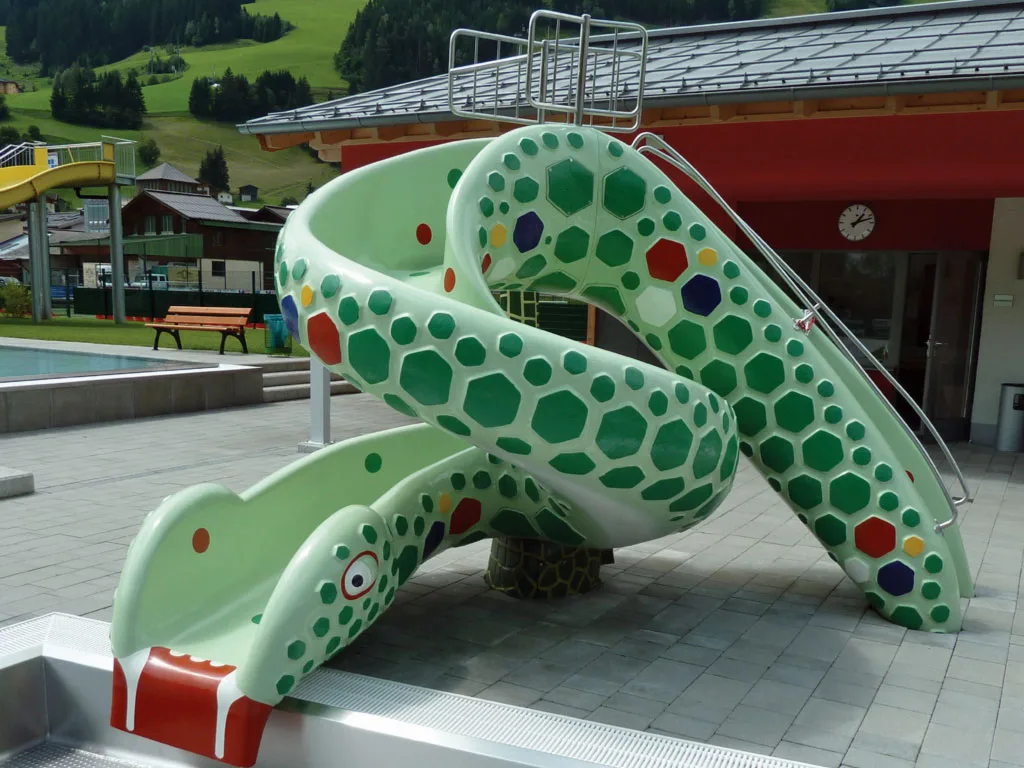

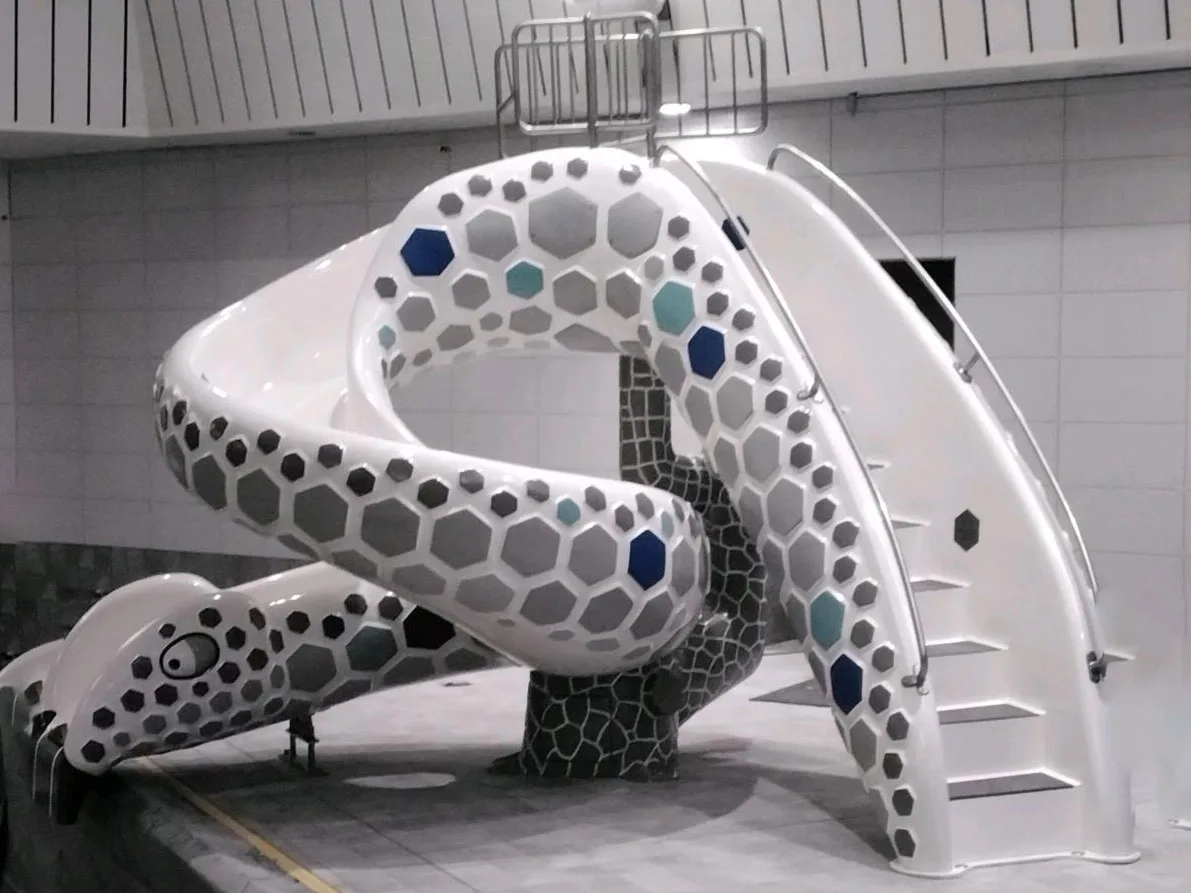

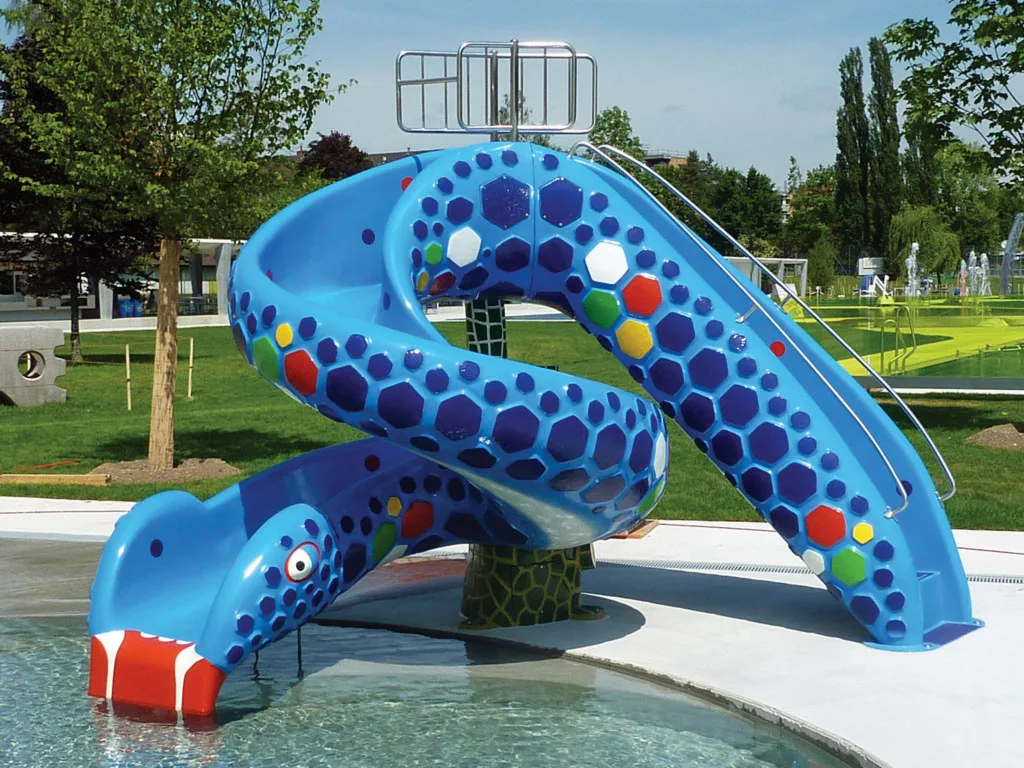

The water slide in snake design is round and closed on all sides. The safety ascent with large non-slip steps is accompanied by handrails suitable for children and ends at the top with a high guardrail at the platform.
Certified safety according to DIN EN 1069, 1 and 2.
Classification according to DIN: Type 2.2
Size (L/W/H): approx. 3,200 x 3,050 x 2,900 mm
Platform height: approx. 1,900 mm
Water quantity: approx. 5 – 10 l/min
Material: glass fibre reinforced plastic (GfK), stainless steel V4A (1.4571)
Target group: children and infants
Positioning:
in the pelvis with WT = approx. 300 to 400 mm or
at the pool edge with WT = from approx. 700 mm (depending on the height of fall)
Who slides faster? Great fun for two children at the same time with two slides. The twin slide presents itself in a new size and look. As a slightly curved version with stainless steel ladder or with a glass fibre reinforced plastic, safety steps closed on all sides or with two safety steps.
The slide surfaces are arranged so high that a 2 m high passageway is created underneath, which means that the slide could also be used with approx. 6 m pool surround width.
Certified safety according to DIN EN 1069, 1 and 2 / 2010.
Classification according to DIN: Type 1.2
Colour: red or special colours
Size (L/W/H): approx. 6400 x 4,000-4600 x 3400 mm
Platform height: 2200 mm
Water quantity: approx. 10 to 20 l/min
Material: glass fibre reinforced plastic (GfK), stainless steel V4A (1.4571)
Target group: Children
Positioning: at the edge of the pelvis with WT = from approx. 1000 mm (depending on the fall height)

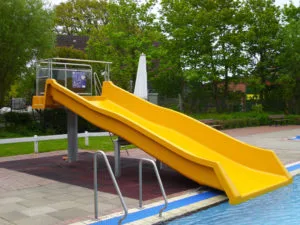

The construction from a single GRP element makes this slide largely maintenance-free, as it does completely without GRP joints. The flat, wide slide trough with a slight jump will delight both young and old children as well as adults and grandparents. The substructure can be made of steel or stainless steel. For even greater safety, a safety staircase with fully enclosed large steps and double stainless steel handrail suitable for children can be chosen.
No annual TÜV inspection necessary
Certified safety according to DIN EN 1069, 1 and 2 / 2010.
Classification according to DIN: Type 1.2
Colour: yellow or special colours
Size (L/W/H): approx. 6700 x 2,600 x 2,950 mm
Platform height: 1,950 mm
water quantity: approx. 1000 l/min or 60 m³/h
Material: glass fibre reinforced plastic (GfK), stainless steel V4A (1.4571)
Target group: families in all age groups
Positioning: at the edge of the pelvis with WT = from approx. 900 mm (depending on the fall height)
Similar to R150-1, but with a 1,500 mm wide sliding recess. As this slide is classified as slide type 1.2, there is no annual TÜV approval required for this extremely durable slide, as is the case for normal wide slides.
Certified safety according to DIN EN 1069, 1 and 2 / 2010.
Classification according to DIN: Type 1.2
Size (L/W/H): approx. 6.000 x 1.550 x 3.100 mm
Platform height: approx. 1,930 mm
Water quantity: approx. 50 to 70 l/min
Material: stainless steel V4A (1.4571)
Target group: Children
Positioning: at the edge of the pelvis with WT = from approx. 1,000 mm (depending on fall height)
The big brother of the R152-1.0SE in curved S-shape with safety steps and safety railings.
Certified safety according to DIN EN 1069, 1 and 2 / 2010.
Classification according to DIN: Type 1.2
Size (L/W/H): approx. 6,000 x 550 x 3,100 mm
Platform height: approx. 1,930 mm
Water quantity: approx. 5 – 10 l/min
Material: stainless steel V4A (1.4571)
Target group: Children
Positioning:
at the edge of the pelvis with WT = from approx. 1,000 mm (depending on the fall height)
Similar to Benyamin.
For a soft landing, we recommend this slide with trunk extension and with underwater protection for increased safety, according to DIN EN 1069 and GUV, if the water depth is less than 700 mm.
The trunk is specially adapted to the depth of the pool. The length of the slide changes accordingly.
Positioning: at the pool edge with WT = approx. 300 to 700 mm
Water slide in curved S-shape made of stainless steel. The underside is completely closed and the large safety steps are equipped with non-slip GRP covering. The railings are dimensioned for children and cannot be climbed over. The slide is always completely electropolished for reasons of appearance and corrosion protection.
As an option, the slide surface for toddlers’ pools can be extended to the pool floor and an under-swimming protection can be fitted.
Certified safety according to DIN EN 1069, 1 and 2 / 2010.
Classification according to DIN: Type 1.2′
Size (L/W/H): approx. 3,300 x 600 x 1,700 mm
Platform height: approx. 1.000 mm
Water quantity: approx. 5 to 10 l/min
Material: stainless steel V4A (1.4571)
Target group: children and infants
Positioning:
at the edge of the pelvis with WT = from approx. 600 mm (depending on the fall height)
at the pool edge with extension with WT = approx. 300 to 600 mm
Similar to R152-1.2N, but in a higher version.
Certified safety according to DIN EN 1069, 1 and 2 / 2010.
Classification according to DIN: Type 1.2
Size (L/W/H): approx. 5,350 x 780 x 2,800 mm
Platform height: 1,760 mm
Water quantity: approx. 5 l/min
Material: glass fibre reinforced plastic (GfK), stainless steel V4A (1.4571)
Target group: Children
Positioning: at the edge of the pelvis with WT = from approx. 900 mm (depending on the fall height)
Similar, R152-1.1, but in a rotating version. This version is chosen when the slide must not regularly protrude into the pool and should be turned away for competitions, school or early swimmers. When turned away (90 degrees), the running surface at the pool surround is of course considerably larger.

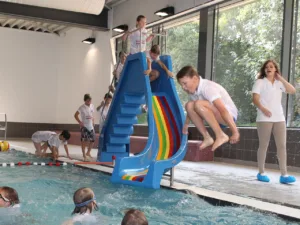

As an alternative, a curved slide Compact can also be chosen in many cases if there is little space around the pool.
Shown in special colour Blue-Wave.
Resilient and safe water slide for public bathing made of GfK with closed safety steps and stainless steel railings.
Certified safety according to DIN EN 1069, 1 and 2 / 2010.
Classification according to DIN: Type 1.2
Size (L/W/H): approx. 3.600 x 650 x 2.300 mm
Platform height: 1,100 mm
Material: glass fibre reinforced plastic (GfK), stainless steel V4A (1.4571)
Target group: Children
Positioning: at the edge of the pelvis with WT = from approx. 700 mm (depending on the fall height)
As an option, we can equip the water features with a hand wheel for even more interactivity. Turn the handwheel by 90 degrees and turn it further and the water flows again. Beautiful hand wheel made of colourshine glass, available for different attractions.
As an option, we can equip the water features with a hand wheel for even more interactivity. Turn the handwheel by 90 degrees and turn it further and the water flows again. Also available optionally for water mushroom R8214-1000.
Dibond sign including stand with pictograms according to DIN EN 1069 for slides type 3, 4 or 5 for example.
Size: 500 x 500 mm
Set consisting of: sign, permanent marker, sealing foils and instructions
Internet Langtext Englisch
Dibond sign for screwing on with pictograms according to DIN EN 1069 for slides type 3, 4 or 5 for example.
Size: 500 x 500 mm
Set consisting of: sign, permanent marker, sealing foils and instructions
With stainless steel cover, time adjustable, for connection to a water supply line, hose connection 1/2″.
Option for Belissima, Balena, Pingo, Flippo, Kurt, Robby, Bubu, Benny, Mobi, Ducky, Pucky, Schildi
Self-adhesive foil with pictograms according to DIN EN 1069 for slides type 1.1, 1.2, 2.1 and 2.2.
Size: 420 x 300 mm
Set consisting of: sign, permanent marker, sealing foils and instructions
